Understanding Source Stats

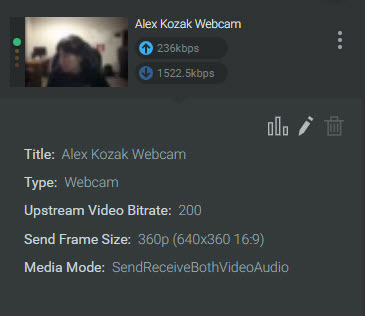

Accessible in the Monitor Tool is the Source Stats chart.  By selecting the "3 dots" menu in the Sources list followed by the "chart" icon, a chart will display statistical data based on a connected source.


These line graphs chart specific data assets the source is sending and receiving. Chart statistics are generated only when a source is connected to the webcast. These charts are only applicable to Telephony, Encoder/Studio, VCU, and Webcam/Mic types.

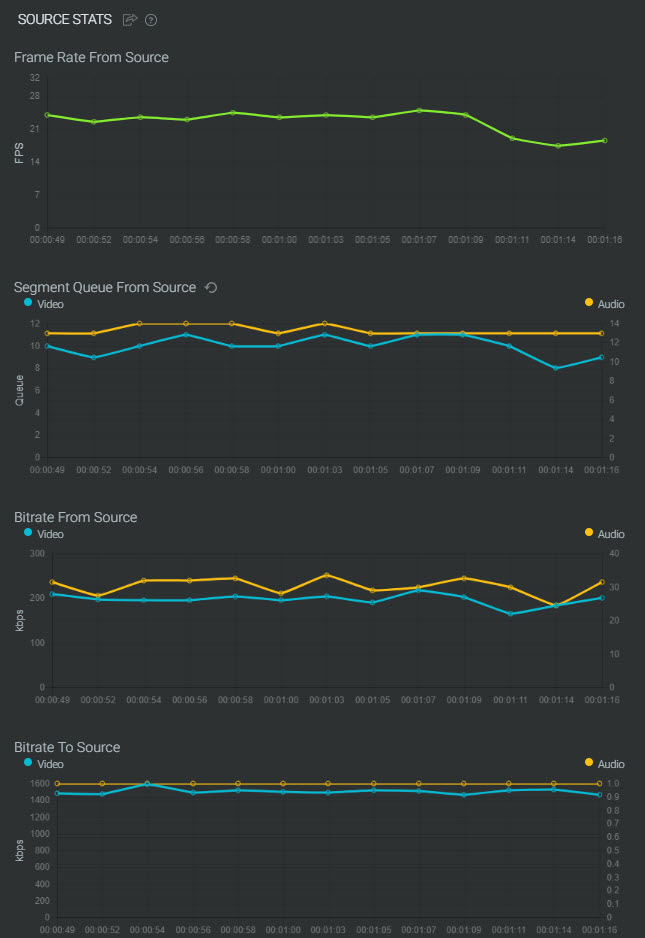

Below is a breakdown of the Source Stats including a representational image:

Frame Rate From Source

The number of frames per second a source is sending to the Studio engine

Segment Queue From Source

The queue of segments the Studio engine uses to keep the audio/video in sync

Bitrate From Source

The total bit rate (kbps) being sent from the source to the Studio engine

Bitrate to Source

The total bit rate (kbps) being received by the source from the Studio engine

Missed Packets From Source

The number of missed packets being sent by the source to the Studio engine

Missed Packets To Source

The number of missed packets being received by the source from the Studio engine

Packets From Source

The total number of packets being sent by the source to the Studio engine

Packets To Source

The total number of packets being received by the source from the Studio engine
